Read More May 20, 2015 | Blain's Farm & FleetHow to Make a Pig Waterer Out of PVC Pipe
Ensuring your pigs always have access to clean water is crucial for their health and well-being, especially during events like fairs where they are away from their usual environment. A DIY pig waterer made from a PVC pipe is cost-effective, durable, convenient, and the perfect way to accommodate your pig’s watering needs at the fair. Learn how to create this portable watering system on your own with this easy guide from Blain’s Farm & Fleet.
Materials Needed

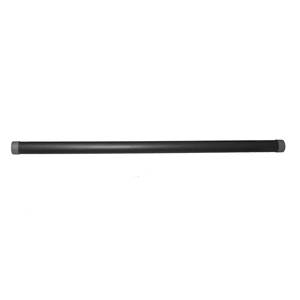

- 10-foot PVC Pipe (Schedule 40)

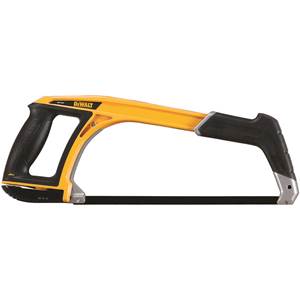

- Hacksaw
- 1/2-inch Female Adapter
- PVC Cement
- Pig Drinking Nipple
- Two Slip Pressure Caps
- Drill and Drill Bit (sized for the adapter)
- 14-Gauge Wire (optional, for hanging)
Step-by-Step Instructions
Step 1: Prepare the PVC Pipe
Start by cutting the 10-foot PVC pipe in half using a hacksaw, resulting in a five-foot length. This size is manageable and holds a good amount of water.
Step 2: Drill the Hole
Drill a hole inside the PVC pipe approximately six to eight inches from the bottom. Ensure the hole is just large enough to tightly fit the 1/2-inch female adapter into the tube.
Step 3: Attach the Adapter
Securely glue the 1/2-inch female pressure adaptor into the hole you just cut using PVC cement. This component will connect to the pig drinking nipple.
Step 4: Install the Drinking Nipple
Once the cement is dry, thread the pig drinking nipple into the adapter. This will act as the dispenser for the pigs to drink water from.
Step 5: Seal the Base
Glue one of the slip pressure caps onto the bottom of the PVC pipe to seal it. This will prevent water from leaking out. Be sure the glue is completely dry before you put any water inside.
Step 6: Cap the Top
Place the other slip pressure cap on the top of the pipe, but do not glue it on. This allows you to remove the cap for refilling the water as needed.
Step 7: Add a Hanging Mechanism (Optional)
If you plan to hang the waterer to a post inside the the pen, drill two small holes into the top of the pipe. Thread the 14-gauge wire through these holes, and secure it at the top to create a sturdy loop for hanging.
Once you’ve hung the waterer, you can remove the top cap as needed to fill the tube with water. This ensures your pigs have access to water whenever they need it during the fair.
Tips for Use
- Location: Position the waterer at a height your pigs can reach. Ensure it’s stable if placed on the ground or securely hung if suspended.
- Refilling: Regularly check the water level, and refill the waterer by removing the top cap. Ensure the top cap is securely in place after refilling to prevent contamination.
- Cleaning: Clean the waterer periodically with a mild detergent, and rinse thoroughly to maintain hygiene.
This waterer is not only cost-effective but also customizable to fit your specific requirements. By following these instructions, you can ensure your pigs have a reliable and constant supply of water, contributing to their health and performance.
