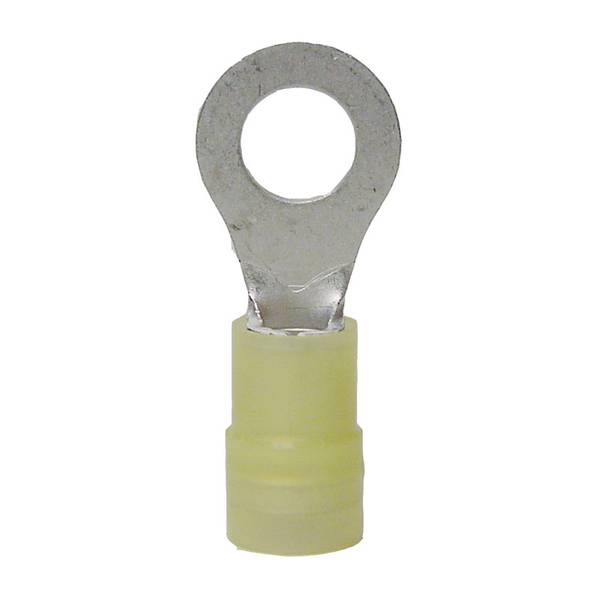

Calterm Blister Anti - Vibe Ring

Description

The Calterm Ring Terminals are used for terminating wires and securing to a bolt or stud. The Nylon Anti-Vibe Insulation is used for higher temperature, vibration-resistant applications.

Features

• Anti-Vibe terminals are constructed with a special internal sleeve that grips the wire insulation and keeps the connected wire from pulling out through stress and excessive vibration.
• Rated at 600 Volt Max
• Temp Rating 221 °F (105 °C)
• The all weather Nylon insulation remains flexible and maintains crimped pressure throughout extreme changes in ambient temperature.

Specifications

• Quantity: 7 per Package
• Color: Yellow
• Gauge: 12-10 (5.5 mm²) AWG
• Size: Stud Size 3/8" (10 mm)
