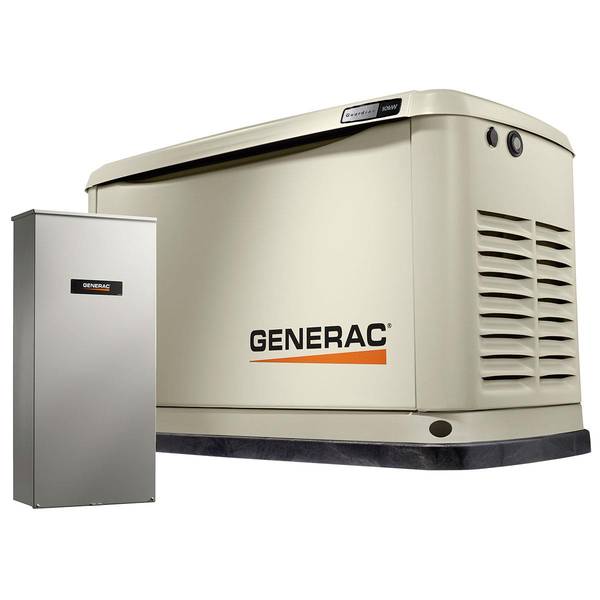

Generac Guardian Series 10/9kW Wi-Fi Enabled Home Standby Generator w/ 16Ct 100Amp Automatic Transfer Switch
Generac
Guardian Series 10/9kW Wi-Fi Enabled Home Standby Generator w/ 16Ct 100Amp Automatic Transfer Switch
Blain # 1486931 | Mfr # G0071720
$
4,119
00
Description
Engineered as the #1 selling home standby generator, this Generac Guardian Series 10/9kW Generator features an aluminum enclosure with automatic power transfer capability. The Wi-Fi enabled system connects to existing LP or natural gas lines, providing reliable permanent emergency backup power during outages with best-in-class power quality for residential and household use.
Features
- 16-Circuit Protection: Powers essential house circuits through the included 100-amp NEMA 3R transfer switch
- True Power™ Technology: Delivers less than 5% total harmonic distortion for safe operation of sensitive household electronics
- G-Force™ Engine: Purpose-built, pressure-lubricated design requires less maintenance while improving reliability for residential emergency use
- Wi-Fi Connectivity: Includes FREE Mobile Link™ monitoring via phone, tablet, or computer from anywhere
- Quiet-Test™ Self-Test Mode: Runs at lower RPM for quieter operation and reduced fuel consumption
- All-Weather Aluminum Enclosure: Durable design withstands various environmental conditions for reliable house protection
- USA Engineering & Manufacturing: Built in America with domestic support team available 24/7/365
Specifications
- Fuel Type: Liquid Propane (LP) or Natural Gas (NG)
- Cooling Type: Air Cooled
- Maximum continuous power capacity (LP Gas): 10,000 Watts
- Maximum continuous power capacity (NG): 9,000 Watts
- Rated Voltage: 240
- Total Harmonic Distortion: < 5%
- Main line circuit breaker: 45 Amp
- Engine Brand: Generac G-Force 400 Series
- Engine Displacement: 460cc
- Recommended Engine Oil Type: SAE 30
- Oil Capacity Including Filter: Approx. 1.1 qt. / 1.0 L
- Fuel Consumption @ 1/2 Load NG cu. ft/hr: 101
- Fuel Consumption @ Full Load NG cu. ft/hr: 127
- Fuel Consumption @ 1/2 Load LP cu. ft/hr (gal./hr): 36 (0.97)
- Fuel Consumption @ Full Load LP cu. ft/hr (gal./hr) 54 (1.48)
- Low Oil pressure shutdown system - prevents catastrophic engine damage due to low oil.
- High temperature shutdown - prevents damage due to overheating.
- Quiet Test Mode: Yes
- Decibel Rating in Quiet Test low speed at Exercise Mode: 57dB(A)
- Decibel Rating at Normal Operating Load: 61dB(A)
- DIMENSIONS:
- Length: 48 in
- Width: 25 in
- Height: 29 in
- Unit Weight: 338 lbs
- Enclosure Type: Aluminum
- Mobile Link Wireless Connectivity: Yes
- Battery Requirement (not included - sold separately): 12 Volts, Group 26R 540 CCA minimum or Group 35AGM 650 CCA minimum
- **INCLUDES: 16 Circuit 100 Amp NEMA 3R Automatic Transfer Switch
- Allows you to backup 120V & 240V circuits
- Compatible w/ 1" standard, tandem, GFCI & AFCI breaker
- Automatic Transfer Switch Model# RXG16EZA3
- Housed in a NEMA 3R enclosure, this transfer switch has an integrated, 16 circuit load center. Designed to supply power to only those designated circuits, it ensures only the essentials are covered by the standby air-cooled generator during an emergency.
- TRANSFER SWITCH SPECIFICATIONS:
- Max Circuits: 16
- No. of Poles: 2
- Current Rating (amps): 100
- Voltage rating (VAC): 250
- Withstand Rating (Amps): 10,000
- Tandem Breaker Capabilities: 8 Tandems
- TRANSFER SWITCH DIMENSIONS:
- Height: 30.1 inches
- Width: 13.5 inches
- Depth: 6.9 inches
- Weight: 39 lbs
Warranty
<p>Manufacturer's 5 Year Limited Warranty - Generator</p><p>Manufacturer's 5 Year Limited Warranty - Transfer Switch</p>
