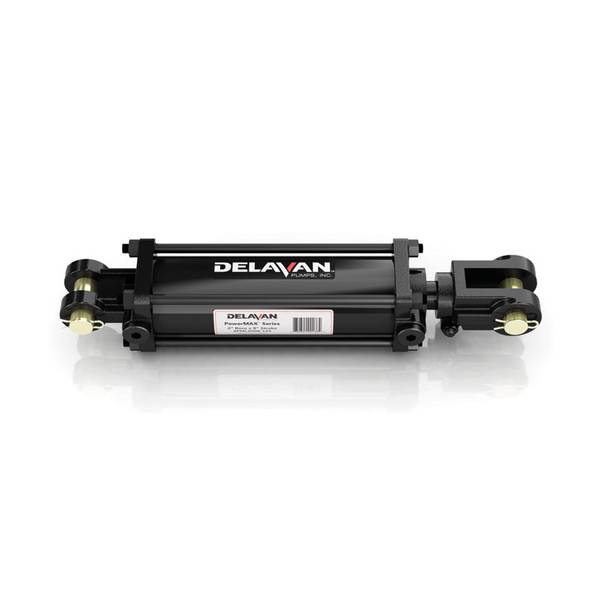

Delavan 2" x 12" x 1.125" Hydraulic Cylinder
Delavan
2" x 12" x 1.125" Hydraulic Cylinder
Blain # 597088 | Mfr # PML2012-112
$
116
99
Description
Created for agricultural and farm applications, this Hydraulic Cylinder delivers performance with its 1.12" rod diameter and 22.25" to 34.25" stroke range. The double-ported design ensures operation in hydraulics environments.
Features
- Double NPTF Ports: Provides installation flexibility with inline port configuration
- Chrome Plated Shaft: Ensures service life in harsh conditions
- Ductile Iron Build: Features machined components for durability
- Double Lip Seal System: Delivers leak-free performance across pressure ranges
- Reinforced Piston Assembly: Self-locking automation grade nut maintains stability under cycle loading
- High Tensile Steel Components: Zinc-plated pins and tie-rods resist corrosion
- Precision Tube Design: Skive and burnished thick wall steel tubing extends seal life
- Quality Tested: Hydraulically tested to twice the working pressure
- Polyurethane Rod Wiper: Removes contaminants from shaft surface
- Mechanical Stroke Control Ready: Threaded shaft accepts stroke control devices
Specifications
- Rod diameter:1.12" Clevis pin: 1" Pin to pin center retracted x extended: 22.25" x 34.25"
- Bore: 2"
- Stroke: 12"
