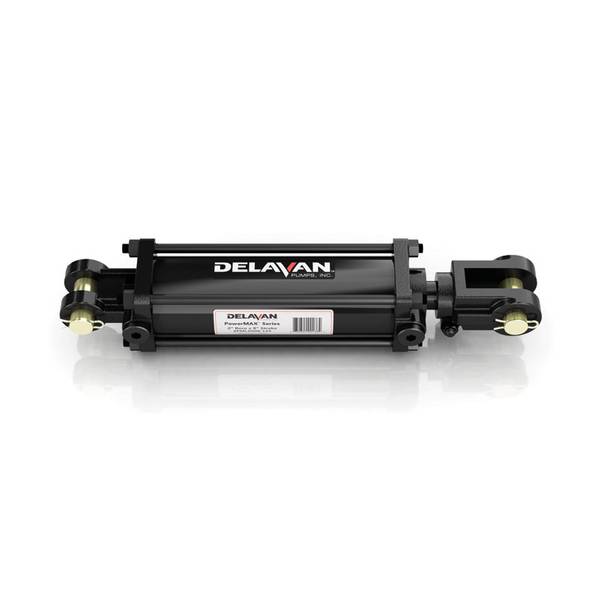

Delavan 2.5" x 8" x 1.125" Hydraulic Cylinder
Delavan
2.5" x 8" x 1.125" Hydraulic Cylinder
Blain # 481733 | Mfr # PML2508-112ASAE
$
112
49
Description
Tailored for demanding agricultural applications, this Hydraulic Cylinder delivers reliable lift power and durability with its 1.12" diameter ram and 20.25" to 28.25" stroke range. The double-ported design and ensure consistent performance under high-pressure conditions, making it suitable for small to medium applications.
Features
- High tensile steel components with zinc plating for corrosion resistance
- Double NPTF Ports: Enables installation options with inline port configuration
- Piston Assembly: Ductile iron with self-locking automation grade nut for cycle stability
- Sealing System: 90 durometer O-rings with anti-extrusion washers prevent leakage under high pressure
- Chrome-Plated Shaft: Chrome plating for service life in harsh environments
- Tube Design: Skived and burnished heavy wall steel tubing for seal longevity
- Double Lip Rod Seal: Polyurethane BS profile for leak-free performance
- Ductile Iron End Caps: Drilled oil passages for bearing support
- Rod Clevis: 360° thread area with set screw locking for load operation
- Testing: Each cylinder undergoes hydraulic testing at up to 2x working pressure
Specifications
- Rod Diameter:1.12" Clevis pin: 1" Pin to pin center retracted x extended: 20.25" x 28.25"
- Bore: 2.5"
- Stroke: 8"
