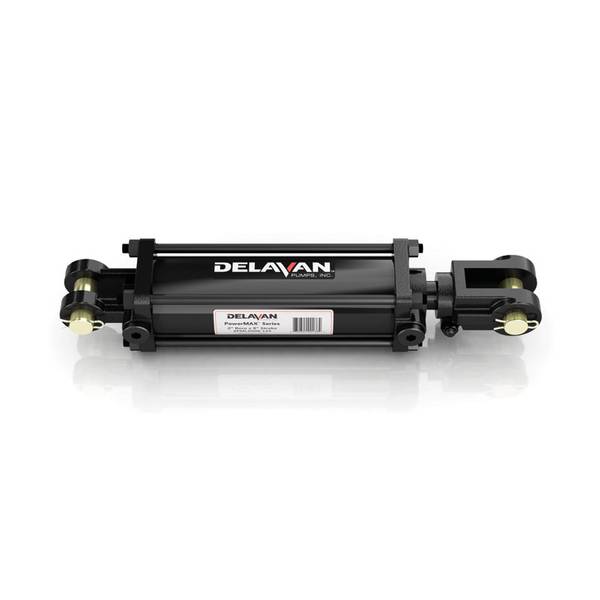

Delavan 2" x 8" x 1.125" Hydraulic Cylinder
Best Seller
Delavan
2" x 8" x 1.125" Hydraulic Cylinder
Blain # 267350 | Mfr # PML2008-112ASAE
$
86
39
Description
Created for agricultural and farm applications, this Hydraulic Cylinder features a 1.12" rod diameter and 1" clevis pin design. Operating at 2500 PSI, it offers a stroke range from 20.25" to 28.25" (pin to pin center), delivering power for hydraulic systems.
Features
- Steel Design: Skive and burnished tubing ensures extended seal and cylinder life
- Double-Ported NPTF Design: Provides assembly flexibility with inline ports
- Sealing System: Double lip polyurethane BS profile rod seal prevents leakage under pressure
- Chrome-Plated Shaft: Hard chrome plating for performance in harsh conditions
- Ductile Iron Components: Rod and clevis caps with drilled oil passages for bearing surface
- Piston Assembly: Self-locking automation grade nut with 90 durometer O-ring seal and anti-extrusion washers
- Quality Tested: Hydraulically tested up to twice the working pressure
- Corrosion Protection: Zinc-plated pins and retainers with cotter pin security
- Full-Circle Threading: Ductile iron rod clevis with set screw locking
Specifications
- Rod diameter:1.12" Clevis pin: 1" Pin to pin center retracted x extended: 20.25" x 28.25" 2500 PSI
- Bore: 2"
- Stroke: 8"
