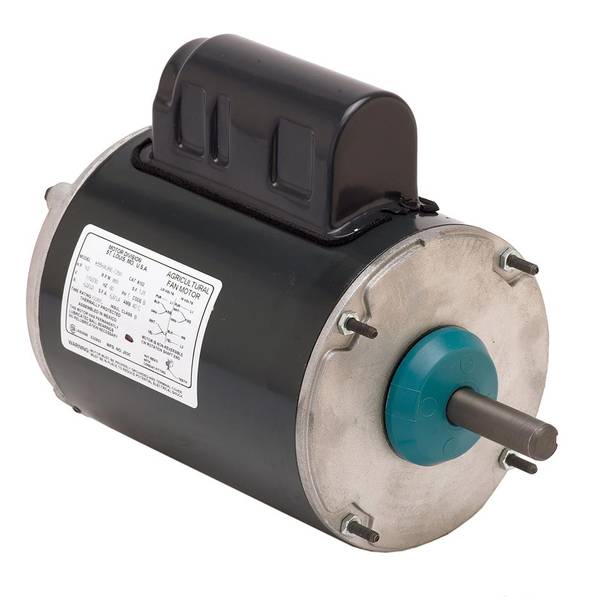

US Motors 1 HP 115/208-230V 1725 rpm Fan Motor

Description

Designed for agricultural ventilation, this 1 HP TEAO Motor delivers reliable performance for direct drive and ventilation fans in poultry and livestock facilities. Operating at 1725 RPM with a 1.15 service factor, this motor provides consistent airflow and operation in farm environments.

Features

• Totally Enclosed Air Over (TEAO) Design: Protects internal components while maintaining operating temperature
• 1 HP Capacity: Delivers performance at 1725 RPM for ventilation
• Dual Voltage Compatibility: Operates on 115V or 208-230V for installation options
• Ball Bearing Design: Ensures smooth operation and service life
• 40°C Ambient Rating: Maintains performance in high-temperature environments
• Automatic Reset Thermal Protection: Prevents motor damage from overheating
• Built-in Conduit Box: Simplifies electrical connections and ensures safe wiring
• Class B Insulation: Provides temperature resistance for operation
• 1.15 Service Factor: Offers additional power capacity for applications

Specifications

• PRODUCT NAME: 1 HP - TEAO - 1725
• PHASETYPE: 1_CAPACITOR START -
• MOTOR ENCLOSURE: TEAO
• HORSEPOWER: 1
• KILOWATTS: 0.8
• POLES: 4
• NUMBER SPEEDS: 1
• RPM: 1725
• HERTZ: 60
• VOLTS PRIMARY: 115/208-230 V
• VOLTS : 115
• VOLTS 2: 208
• VOLTS 3: 230
• FRME : 56
• STATOR DIAMETER: 6.3
• STACK: 3
• MOUNTING: RIGID
• MOTOR TYPE: FHP
• OPPOSITE END BEARING: 6203
• SHAFT END BEARING: 6203
• AMBIENT: 40
• ROTATION: CCW LEAD END REV
• SERVICE FACTOR: 1.15
• RUNCAPMFD: 15
• RUNCAPVOLTS: 370
• STARTCAPMFD: 208
• SHIPPING WEIGHT: 32
• THERMAL PROTECTION: AUTOMATIC RESET
• BREAKDOWN TORQUE: 133
• BREAKDOWN TORQUE UOM: OZFT
• LOCKED ROTOR TORQUE: 79.44
• LOCKED ROTOR TORQUE UOM: OZFT
• INSULATION CLASS: B
• KVA CODE LETTER: H
• LOCKED ROTOR AMPS: 55.9
• FULL LOAD AMPS PRIMARY: 10.9/5.4-5.4
• SERVICE FACTOR AMPS PRIMARY: 12.0/6.0-6.0
