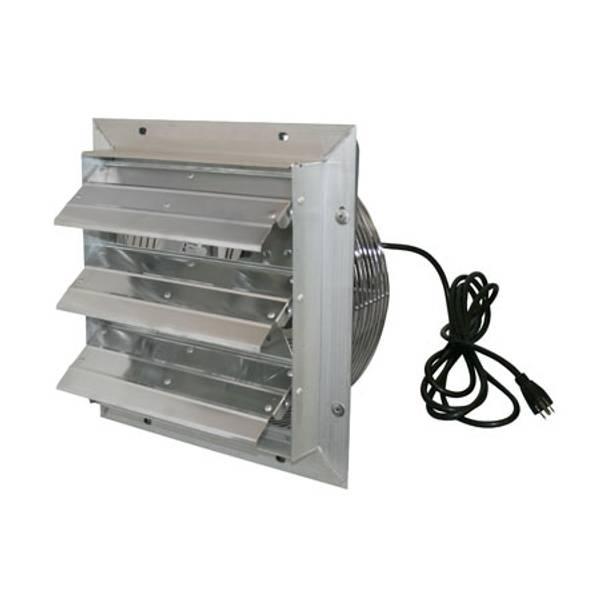

J&D Manufacturing 1/10 HP 12" ES Shutter Fan

Description

J&D Manufacturing’s ES Shutter Fan is a rugged, agriculture-grade barn exhaust fan engineered for dependable performance in demanding environments. Ideal for barn ventilation, greenhouse fan applications, warehouses, and other industrial ventilation systems. The ES Shutter Fan is designed to move high volumes of air efficiently. Available pre-wired with a cord and plug for true “No Electrician Needed” installation, this fan offers flexible installation options to meet a variety of facility needs. Each unit ships fully assembled and ready for immediate installation—delivering fast, hassle-free ventilation right out of the box.

Features

• Smooth and quiet operation
• Ships totally assembled - pull it out of the box and plug it in
• No electrician required when plugged into a locally approved electrical circuit
• Aluminum blade with a zinc plated steel hub, balanced for smooth vibration-free operation
• Easy cleaning and meets OSHA guidelines
• OSHA approved on interior wall and approved on exterior wall when mounted above 7’
• High efficiency aluminum shutters with tie bar to eliminate shutter flapping
• Totally enclosed, maintenance free, high efficiency, UL/ULC certified motor
• Rough opening of 20-1/2" X 20-1/2" required
• 18-gauge housing

Specifications

• Dual voltage motor comes prewired at 115V, 3.8A, 2,697 CFM @0.10" SP
• Variable speed compatible with separate variable speed control
• Height: 20"
